Screw Decanter

Screw decanter centrifuge of SONGPOHIGHTECH has been
used in industries, such as petrochemical, mining, food,
pharmaceutical, sewer, waste, water supply, wastewater.
It has also performed in various processes such as solid-liquid
separation, liquid-liquid separation, dewatering, refinement,
classification, concentration, and extraction.

We have various types of screw decanter centrifuges depending on the purpose, function and characteristics so you can choose centrifuges as you need.

Principles

The denser solids move radially through the liquid and accumulate in the walls of the rotating bowl and the lighter liquid is conveyed by screw conveyer, dehydrated and discharged.

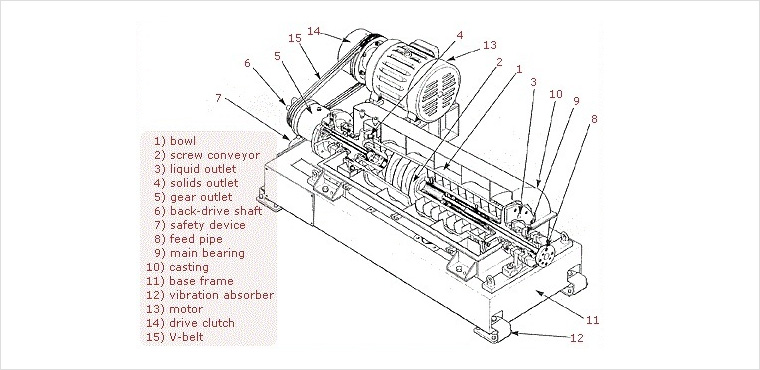

Structure

High dehydration performance with cone shape

You can have high efficiency with low energy consumption because it uses flat bowl cone for fine particles or flexible substances and steep bowl cone for relatively big and rough particles.

Economic rotating bowl

You can choose rotating body that uses long bowl for wide sediment and side screw depending on substances.

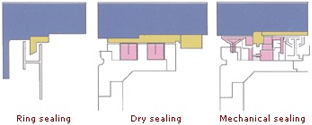

Selection of seal devices according to factory

Ring sealing, labyrinth sealing preventing vapor mist for top pressure.
Gas purge dry sealing for low pressure Mechanical sealing for high pressure

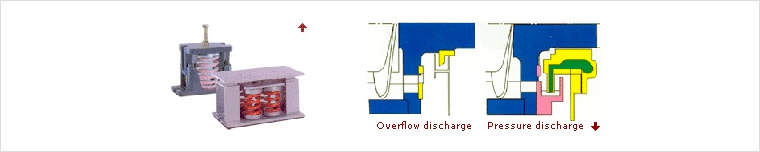

Vibration prevention device for easy foundation design

Foundation installment is easy with rubber that prevents vibration or spring structure.

Discharging devices for separated liquid

You can choose discharging device depending on your needs, such as overflow outlet by ring dam, pressure outlet by centripetal pump and skimming outlet with level adjustment.

Wide application with back drive

You can adjust slurry concentration or dehydration with back drive that controls the speed of screw conveyor.

Safety device

Overload device of decelerator has safety device for system protection.

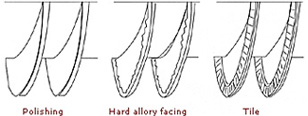

Wear-resistant materials

Ultra-light alloy and tile and ceramic can be added on the surface of screw conveyor and it improves wear-resistance.

Features

Used for relatively fine solids.
You can choose washing time for solids with filtering process.
Time and energy can be saved when foreign substances on the
surface of solids are removed. Centrifuge with highly efficient filter,
sediment and washing effects can be adjusted according
to various process requirements.
The speed of centrifuge can be continued or changed. DSP centrifuge has rotation pipes and siphon. Processing time can be reduced since it increases filter pressure to siphon.
Centrifuge has both filter and vacuum effects. Regeneration of residues varies the usage of siphon MTP centrifuge.

Typical application and usage

The machine is used for chemical, pharmaceutical (or sterilization), food, starch industries and treats sodium sulphate, plaster, melamine resin, vitamin, aOutstanding result and good productivity and
operation need flexibility, low liquid holdup and perfect solids washing.ntibiotics, and heat treating oil.

"Horizontal centrifuge that separates and dehydrates by filter and sediment"

Advantages and efficient separation

- Advantages and efficient separation.
- Particles with Ca 0.01~0.2mm size can be separated efficiently from foreign substances.
- Solids feeding with 0.01㎥/h ~50㎥/h can be separated from foreign substances.
- Efficient washing and extraction.
- Low liquid holdup.
- It prevents explosion with complete filter and vacuum process.
- All equipment parts that can be contacted with corrosive foreign substances can be produced or
  llcoated with corrosion resistant substances.

Surplus profits from DSP centrifuge with rotational siphon.

[ Regeneration of residual heel ]

Residual heel has penetrability as result of back washing.
It means you do not need to change filter and residual heel as often.

[ Increase of filtering ]

You can have increased filter speed compared to using the standard centrifyge.
The bottom of filter media has vacuum part.

[ Stronger washing ]

Strong washing effects can be gained by reducing the speed and recycle of the washing liquids.

[ High speed washing ]

Washing time can be reduced by replacement washing.

[ Vertically balanced supply ]

Imbalance can be prevented by supplying to the liquid container.

[ Reduction of liquid demand ]

You only need a small amount of liquid to wash the residues.

[ Sediment ]

DSP centrifuge can choose other types of sediment processes when the centrifuge can't create satisfying results.
Two types of liquid with different density can be separated by the DSP centrifuge.

[ Flexibility ]

DSP centrifuge can easily changge working condition or characteristics of product.
