Centrifugal Dehydrators

Production composition-structure

Outlines

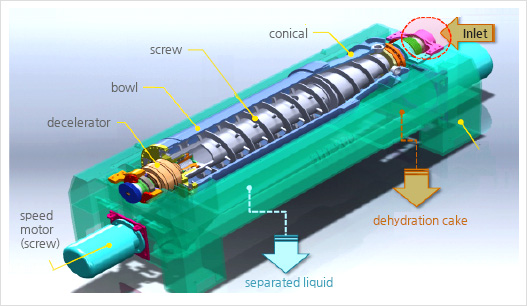

[sewer processing] machine that dehydrates the concentrated sludge by centrifugal force. Types of centrifuges are horizontal and continuous, vertical and continuous, and vertical and bathing. A dehydrator called decanter is used for dehydration of sludge. The decanter is composed of a cone cylinder body that revolves around the horizontal axis and the screw conveyor.
Separated liquid overflows outlet because sludge provided into the body moves to the inner wall and is carried by a screw that revolves slightly differently from the body and is discharged outside. It needs to add a coagulant to improve the particle removal rate. The percentage of liquid holdup of dehydrated sludge is 60~85% depending on types of dehydration, load, characteristics of sludge and coagulants.

Machine that separates, refines and concentrates materials with differenet ingredients and gravity using centrifugal force.
Centrifuge is mostly used to divide homogenate into several parts by centrifugal force. Homogenate in the test tube can be divided depending on the size and density of particle by revolving with high speed.
This method is also used to enrich nuclear fuel.

The performance of centrifuge is decided by the centrifugal force against gravity, or the centrifugal effect (centrifuge acceleration/ gravity acceleration).The centrifugal effect is decided by radius and rotation velocity of centrifuge because the size of centrifugal force is mass x radius x angular speed².
Rotation velocity ranges from 1,000 per minute to ten thousands per minute and there are three types.

• Low speed centrifuge (desktop centrifuge) : 6,000rpm (6,000g) or less. It is mostly used to separate materials that precipitates easily like cells or nuclei.
• High speed centrifuge : 20,000~25,000rpm (60,000g). It is equipped with the cooling device and is used to separate cells, nuclei and micro organs in cells.
• Ultracentrifuge : 40,000~80,000 (600,000g). It is equipped with a cooling device and a vacuum plant. It can separate micro organ in cells, cell membrane components and macromolecules. Centrifuge is also used to separate insoluble liquids with different gravity. It is divided into the centrifugal settler and the filter.
• Separator : used to separate particle and colloid since it does not utilize gravity difference. applied to fat removal of milk and blood plasma separation with 5,000~10,000rpm.
• Filter : centrifugal filter, ex) dehydration of washing machine. Water moves outwards throughout small holes if drum with small holes rotates very fast after putting wet clothes. It is used to separate sugar crystals and make liquid like juice clean and clear.

major usage

Environment and waste related

• Sewer : city sewer, building sewer, agricultural wastewater, fish wastewater
• Human waste : human waste, septic tank
• Waste : dust destructor, final waste disposal site, fly ash from dust destructor
• Water supply : filtration, industrial water, underground water
• Factory waste : food industry wastewater, livestock industry wastewater, chemical factory wastewater, dye wastewater, metal plating wastewater, thermoelectric power plant wastewater, still mill wastewater, metal-working industry wastewater, machine industry wastewater, oil wastewater, wet-type dust waste, flue-gas desulfurization plaster
• Mining industry : pulverised coal, coal and steel, slug, clay, kaolin, plating solution, iron, glass powder, waste oil, calcium carbonate
• Civil engineering : water with mud - slurry wall method, reverse method turbid water - dam, tunnel turbid water, cement milk, river sand dredging
• Electricity : fluorescent substance in color Braun tube, polymer of copier toner, semi conductor (Si, GaAs, SiO2, Sic, CMP waste water), Chemical Industry
• Synthetic resins : vinyl chloride, vinylidene chloride, polyethylene, polystyrene, polyvinyl, ABS, etc
• Dye
• Pigment : titanium oxide, chrome yellow, red iron oxide, etc
• Chemical fertilizer
• Carbon
• Medicine
• Crystal : sodium chloride, sodium bicarbonate, sodium sulphate, barium sulfate, plaster, magnesium sulfate, biomethanol, other food industry, starch (corn starch, potato, sweet potato), fish meal, rendering, yeast, soy milk, soybean, protein, juice, beverage, seasoning

Specification

Screw Decanter, Machine Centrifugal Thickener, Machine Centrifugal Separator, Machine Centrifugal Hydroextractor

MODEL	Nominal capacity (m3/hr)			G-force	Moter(kw)	size			Weight

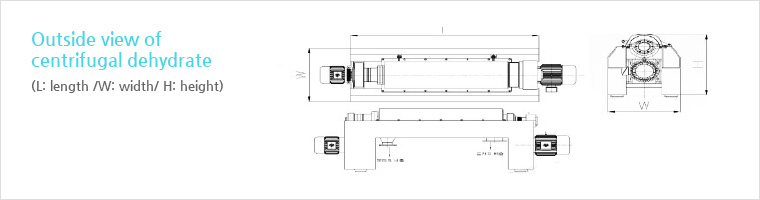

	Centrifugal Hydroextractor	Centrifugal Separator	Centrifugal Thickener	(MAX)	Drive/Back drive	Length(L)	Width(W)	Height(H)	Weight(kg)
SHT200MCH	3	1~3	1~3	3.000	5.5/2.2	1,600	1,000	600	1,000
SHT250MCH	3~5	3~5	3~5	3.000	7.5/3.7	2,000	1,300	700	1,300
SHT250MCH-2	1~5	3~5	3~5	3.000	7.5/3.7	2,000	1,300	700	1,070
SHT300MCH	4~9	5~7	5~7	3.000	15/5.5	2,400	1,500	900	1,500
SHT350MCH	5~10	7~10	7~10	3.000	22/7.5	2,500	1,600	900	2,800
SHT350MCH-2	5~10	7~10	7~10	3.000	22/7.5	2,500	1,600	900	2,450
SHT400MCH	10~15	10~20	10~20	3.000	30/7.5	2,800	1,700	950	3,000
SHT450MCH	15~20	20~25	20~25	3.000	45/11	3,000	2,000	1,000	5,000
SHT500MCH	18~25	20~30	20~30	3.000	55/15	3,800	2,100	1,100	5,500
SHT560MCH	30~37	30~36	30~36	3.000	55/15	3,830	2,300	1,200	6,000
SHT600MCH	35~45	35~45	35~45	3.000	75/22	4,000	2,500	1,300	6,500
SHT700MCH	45~65	45~65	45~65	3.000	90/22	4,500	2,600	1,600	7,500
SHT800MCH	65~75	65~90	65~90	3.000	110/30	5,000	2,700	1,900	8,800
SHT900MCH	75~85	90~100	90~100	3.000	110/30	5,500	2,800	2,300	10,000

* Treatment capacity is based on DS 2% and varies depending on appearance of substances (viscosity granularity).
* As result of our continuous R&D, the specification is subject to change without any notice
