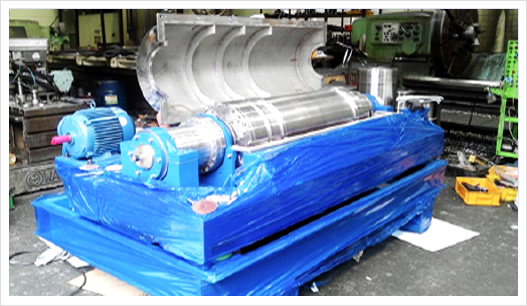

Centrifugal Concentrators

Production composition-structure

Outlines

A decanter centrifuge has less harmful elements to the environment than other centrifuges and operates stably without the need for the operator's careful attention. 90% or more solids of low density surplus sludge can be removed without a coagulant and its process ability can be boosted with a small amount of coagulant. The density of emission can be adjusted between 1% and 10%. In addition, it has a speed adjustment function that makes a concentration of the same density emit continuously against the change of inlet sludge density by adjusting the inner screw speed automatically.

Surplus sludge from water supply, sewage, livestock wastewater, human waste, and other wastewater treatment facilities or primary mixing sludge 약주형 are applied when the processing volume is increasing and collect rate of solids is not good due to low sediment of sludge.

Specification

Screw Decanter, Machine Centrifugal Thickener, Machine Centrifugal Separator, Machine Centrifugal Hydroextractor

MODEL	Nominal capacity (m3/hr)			G-force	Moter(kw)	size			Weight
	Centrifugal Hydroextractor	Centrifugal Separator	Centrifugal Thickener	(MAX)	Drive/Back drive	Length(L)	Width(W)	Height(H)	Weight(kg)
SHT200MCH	3	1~3	1~3	3.000	5.5/2.2	1,600	1,000	600	1,000
SHT250MCH	3~5	3~5	3~5	3.000	7.5/3.7	2,000	1,300	700	1,300
SHT250MCH-2	1~5	3~5	3~5	3.000	7.5/3.7	2,000	1,300	700	1,070
SHT300MCH	4~9	5~7	5~7	3.000	15/5.5	2,400	1,500	900	1,500
SHT350MCH	5~10	7~10	7~10	3.000	22/7.5	2,500	1,600	900	2,800
SHT350MCH-2	5~10	7~10	7~10	3.000	22/7.5	2,500	1,600	900	2,450
SHT400MCH	10~15	10~20	10~20	3.000	30/7.5	2,800	1,700	950	3,000
SHT450MCH	15~20	20~25	20~25	3.000	45/11	3,000	2,000	1,000	5,000
SHT500MCH	18~25	20~30	20~30	3.000	55/15	3,800	2,100	1,100	5,500
SHT560MCH	30~37	30~36	30~36	3.000	55/15	3,830	2,300	1,200	6,000
SHT600MCH	35~45	35~45	35~45	3.000	75/22	4,000	2,500	1,300	6,500
SHT700MCH	45~65	45~65	45~65	3.000	90/22	4,500	2,600	1,600	7,500
SHT800MCH	65~75	65~90	65~90	3.000	110/30	5,000	2,700	1,900	8,800
SHT900MCH	75~85	90~100	90~100	3.000	110/30	5,500	2,800	2,300	10,000

* Treatment capacity is based on DS 2% and varies depending on appearance of substances (viscosity granularity).
* As result of our continuous R&D, the specification is subject to change without any notice
